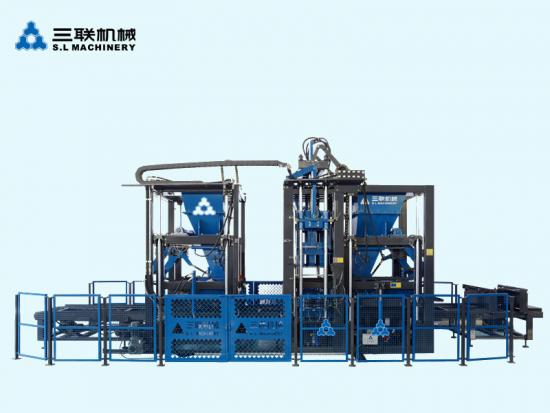

Fully automatic servo brick machine production line

The fully automatic servo brick machine production line is based on servo vibration and servo hydraulic technology, and can be equipped with functions such as lateral shifting, core pulling, EPS board conveying and quick mould changing to meet customer production needs to the maximum extent. It can support various standard concrete products such as curbstones, hollow bricks, Pc imitation stone bricks, solid bricks, and water slope protection bricks.

product introduction

he fully automatic servo brick machine production line

The fully automatic servo brick machine production line is based on servo vibration and servo hydraulic technology, and can be equipped with functions such as lateral shifting，core pulling，EPS board conveying，and quick mould changing to meet customer production needs to the maximum extent. It can support various standard concrete products such as curbstones, hollow bricks,Pc imitation stone bricks,solid bricks,and water slope protection bricks.

Technical Parameters

Model	SLST2000	SLST1500	SLST1400	SLST1300	SLST1000
Pallet Size(mm)	1400x1350	1400x1200	1400x950	1400x750	1220x900
Max.Molding Area(mm)	1310x130	1310x1150	1310x900	1310x700	1100x860
Min.Product Height(mm)	45	45	45	45	45
Max.Product Height(mm)	500	500	500	500	350
Cydle Time(s)	Solid Brick 12-15 Payer 12-25	Solid Brick 12-15 Paver 12-25	Solid Brick 12-15 Paver 12-25	Solid Brick 12-15 Paver 12-25	Solid Brick 12-15 Paver 12-25
lf the required pallet size or product heights are not listed here, we are happy to make special plans for you.

Production Table

Model	Brick Size(mm)	Production(Per mould	Production(8h one shift)
SLST2000	Hollow Brick 390x190x190	8	≈34.500PCS 480m
	Solid Brick 240x115x53	105	≈252,000PCS 368m²
	Pave 200x100x60	66	≈95.000PCS 1900m
SLST1500	Hollow Brick 390x190x190	5	≈28,000PCS 394m²
	Solid Brick 240x115x53	94	≈225,600PCS 330m²
	Paver 200x100x60x80	60	≈86,000PCS 1700m²
SLST1400	Hollow Brick 390x190x190	12	≈22,400PCS 315m
	Solid Brick 240x115x53	73	≈175,200PCS 256m²
	Paver 200x100x60x80	48	≈68,800PCS 1350m²
SLST1300	Hollow Brick 390x190x190	9	≈17.200PCS 240m²
	Solid Brick 240x115x53	55	≈132.000PCS 193m²
	Paver 200x100x60	36	≈51,800PCS 1030m
SIST1000	Hollow Brick 390x190x190mm	0	≈18,600PCS 262m³
	Solid Brick 240x115x53	62	≈148.000PCS 216m³
	Paver 200x100x60x80	40	≈57,300PCS 1130m²
Difference between different raw material and ratio and production mode If a cuber is required,the capacity may be affected

1、 Servo Vibration System

2、 Servo Control System

3、Efficient Servo Hydraulic System

4、Quick Mould Changing

5、Mould Box Damping Airbag

6、Mould Head Shifting Device

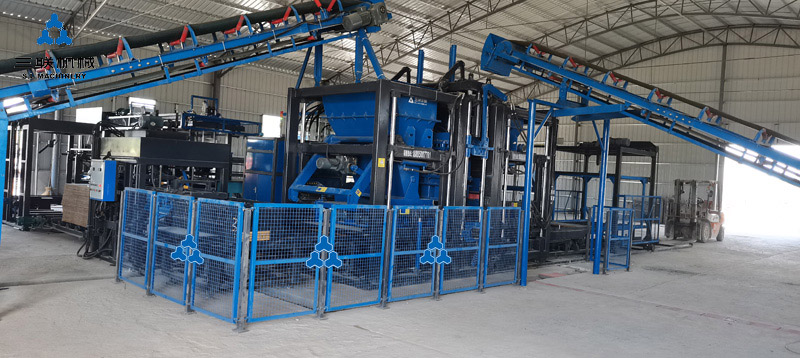

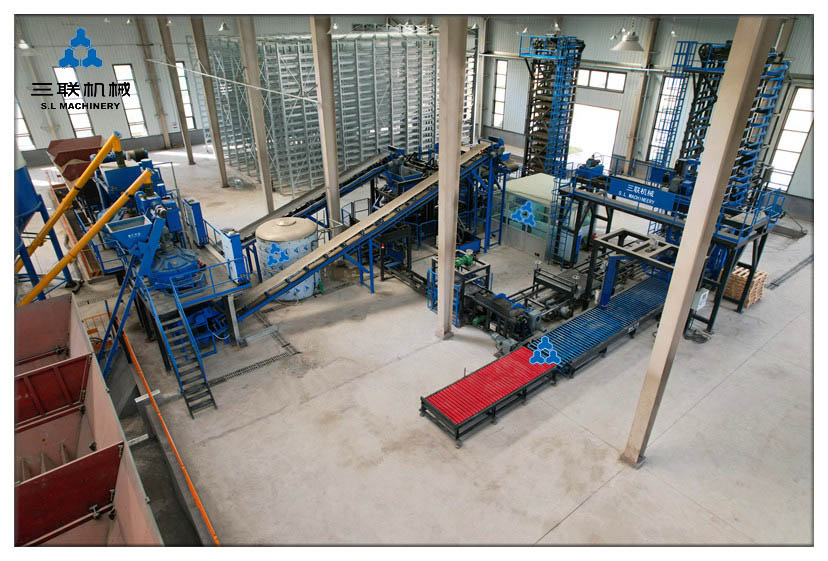

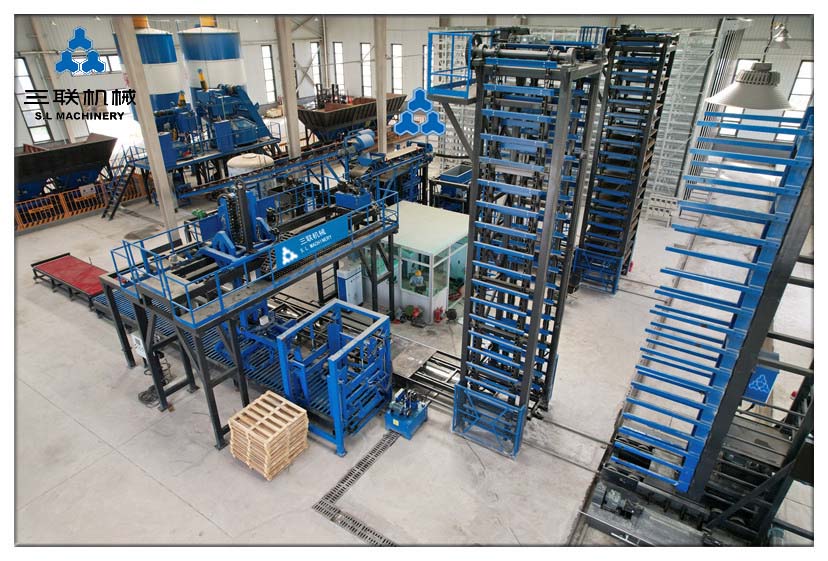

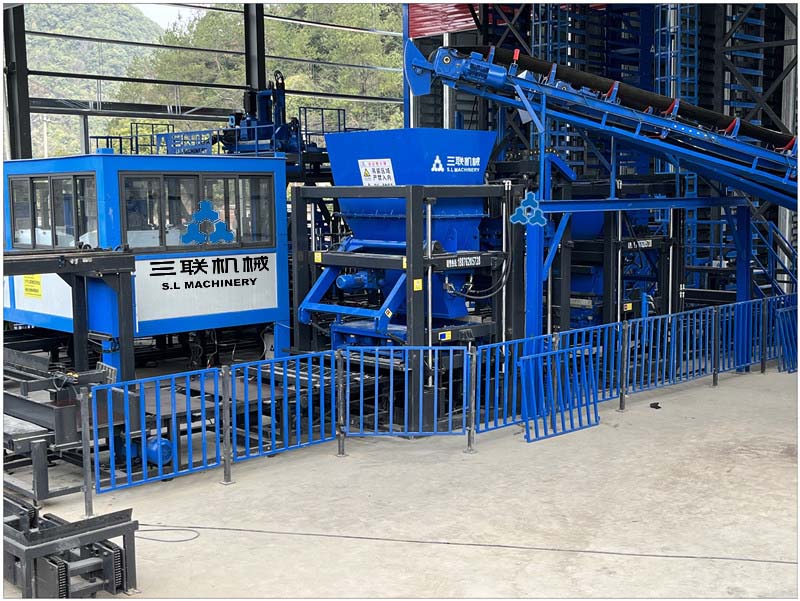

Project Cases
