Q(F)-A Automatic Block Machine

Block molding machine,easy to operate and maintain,small investment. Cost get back in a short time,it is suitable to use on economic.

product introduction

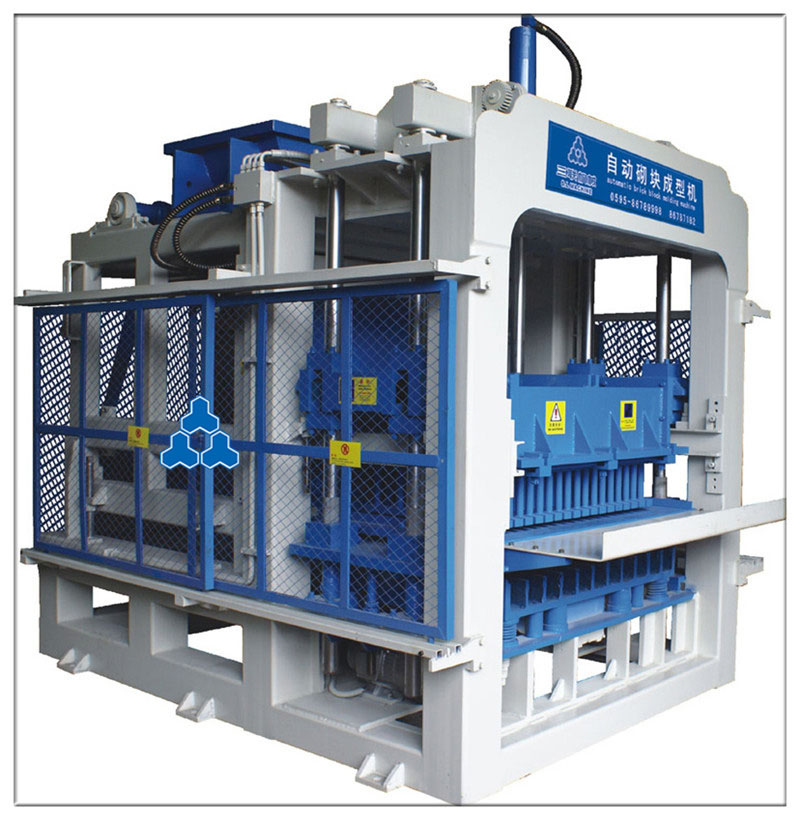

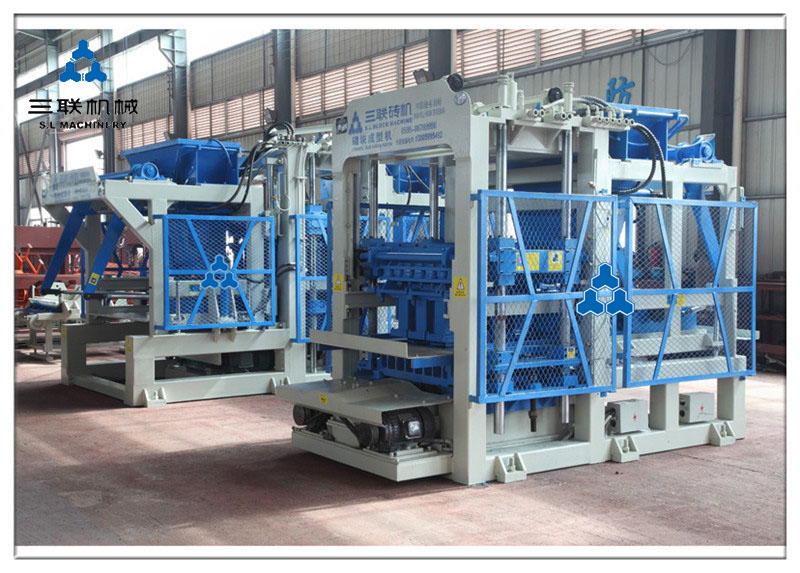

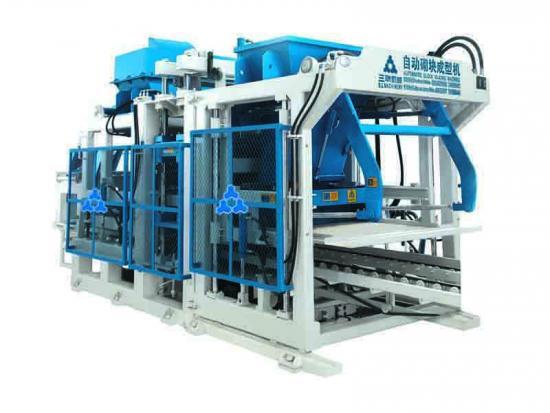

Q(F)-A Automatic Block Machine

Economic block forming machine, compact structure, easy to operate and maintain, convenient, small investment, quick effect, suitable for small and medium-sized customers to invest supporting simple production line.

Itechnical parameters

pallet size(mm)	1220x90o	970x880	1150X750	880x680	880x500
Max. Molding Area(mm)	1100x860	920X830	1090X700	830x640	830X460
Min. product Height(mm)	50	50	45	50	50
Max.product Height(mm)	250	200	250	200	200
cycle Time(s)	Solid Brick 15-18 Paver 20-25	Solid Brick 15-18 Paver 20-25	Solid Brick 15-18 Paver 20-25	SSolid Brick 15-18 Paver 20-25	Solid Brick 15-18 Paver 20-25
lf the required pallet size or product heights are not listed here, we are happy to make special plans for you.

Production Table

Model	Brick size	production(per moud)	production(8h one shift)
Q(F)T10	Hollow Brick/390x190x190mm		≈14,400Pcs/202m3
	solid Brick/240x115x53mm	62	≈100,000Pcs/135m3
	paver/200x100x60/80mm	40	≈52,000Pcs/1000m2
Q(F)T8	Hollow Brick/390x190x190mm	8	≈11,500Pcs/160m3
	solid Brick/240x115x53mm	48	≈80,000Pcs/117m3
	paver/200x100x60x80mm	32	≈44,000Pcs/880m2
Q(F)T7	Hollow Brick/390x190x190mm	7	≈10080Pcs/140m3
	solid Brick/240x115x53mm	46	≈77000Pcs/147m3
	paver/200xoox60mm	30	≈40000Pcs/800m2
Q(F)T6	Hollow Brick/390x190x190mm	6	≈8,640Pcs/120m3
	solid Brick/240x1 15x53mm	32	≈53,700Pcs/73m3
	paver/200x100x60/80mm	21	≈29,000Pcs/577m2
Q(F)T4	Hollow Brick/390x190x190mm	4	≈5760Pcs/80m3
	solid Brick/240x115x53mm	21	≈35,000Pcs/48m3
	paver/200xoox60x80mm	14	≈20,100Pcs/400m2
Difference between different raw material and ratio and production mode If a cuber is required,the capacity may be affected
