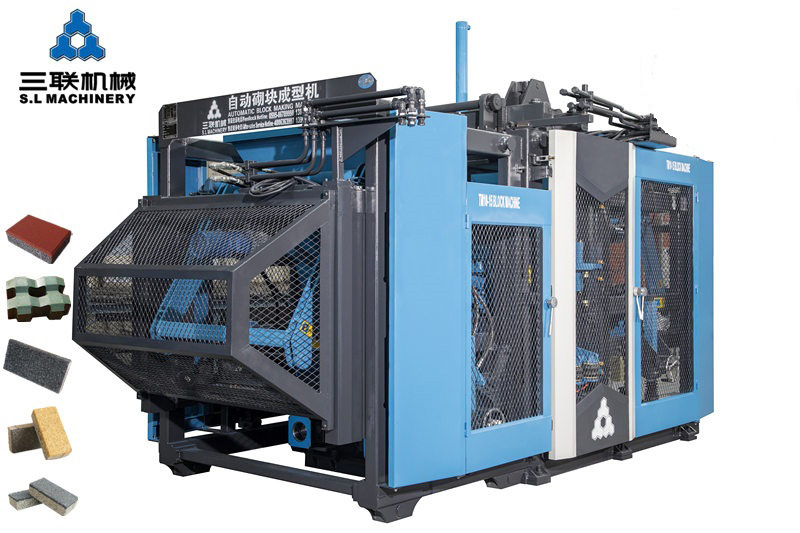

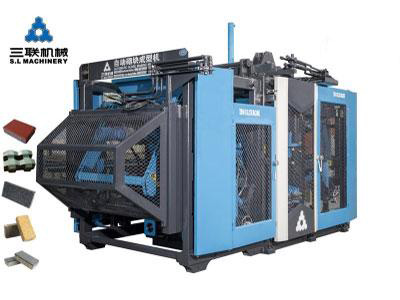

SLST1000 Servo Tech Intelligent Block/ Brick Making Machine

Automatic servo block machine for making clay blocks,concrete blocks,cement block etc..
Item no.: SLST1000 Automatic S


Product origin: China

Product Description:

With servo technology the machine can use all kinds of recycled aggregate from construction waste,which can greatly save the cost of brick making. Compared with common brick machine, the production capacity is larger, the benefit is higher and the adaptability is wider. The special vibration and distribution system of equipment can meet the producing requirements of different products, such as color permeable pavement brick, standard brick, grass planting brick and concrete products such as curbstone, chain brick, hydraulic block, etc..


MAIN PARATMETERS

CAPACITY TABLE

ITEM

MEASUREMENT

BLOCK

SAMPLE

SLST1000

PALLET SIZE(MM)

1220*900

HOLLOW BLOCK

(390X190X190MM)



PCS/PALLET

10

MAX. PRODUCTIVE AREA(MM)

1100*860

SOLID BLOCK

(240X115X53MM)



PCS/PALLET

62

MIN. PRODUCT HEIGHT(MM)

45

PAVER

(200X100X60MM)





PCS/PALLET

40

MAX. PRODUCT HEIGHT(MM)

350

I SHAPE BLOCK

(198X165X60MM)



PCS/PALLET

24

CYCLE TIME(S)

12~25 S

ZIGZAG BLOCK

(225X112.5X60MM)



PCS/PALLET

28

SHORTEST CYCLE TIME(S)

SOLID BLOCK 12

SQUARE BLOCK

(250X250X60MM)



PCS/PALLET

12

PAVER 20

GRASS BLOCK

(400X200X60MM)



PCS/PALLET

10

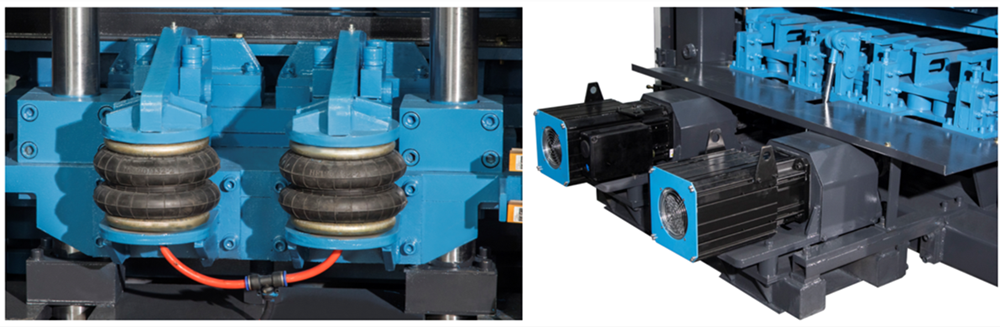

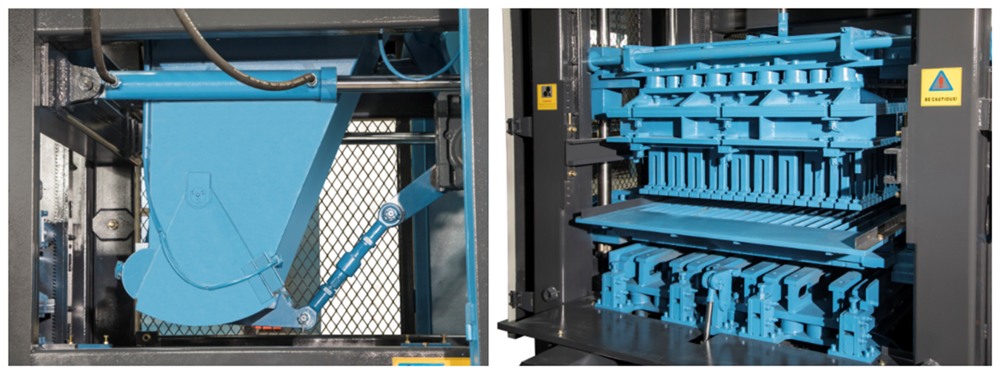

Airbag: The airbag structure is adopted, which is easier for the installation and replacement of mold, and the amplitude of the mold frame can be adjusted by air pressure during production, which is suitable for large-scale equipment.


Base material bin and discharge parts: hydraulic cylinder control, storage of mixed raw materials.


Servo Vibration System:

Adjust the phase angle to start or eliminate vibration

It realizes higher efficiency,lower energy consumption,better vibration effect and easy maintenance.

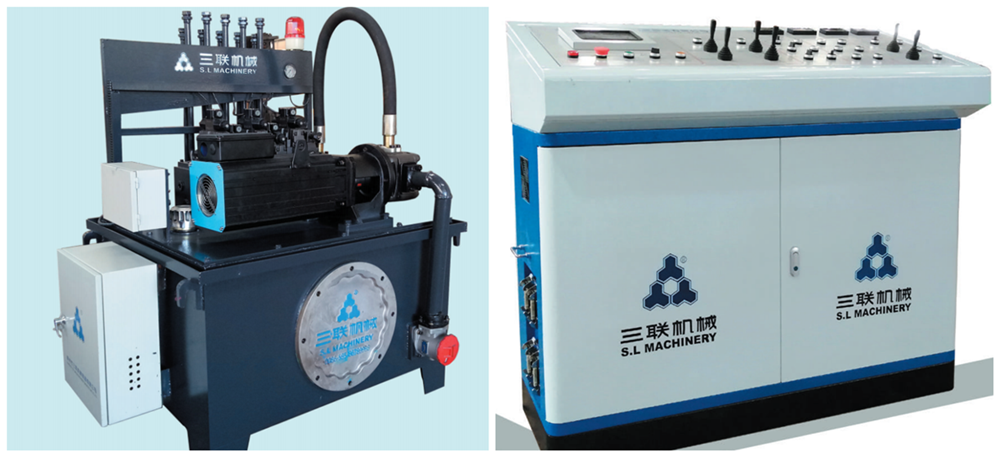

Servo Hydraulic System

Advantages of hydraulic system:

Energy consumption saved more than 30%,noise is 10-20 DB lower and the working efficiency is 10-20% higher than the traditional hydraulic system.

The heat produced by servo hydraulic system is just 10%-30% of the traditional hydraulic system.

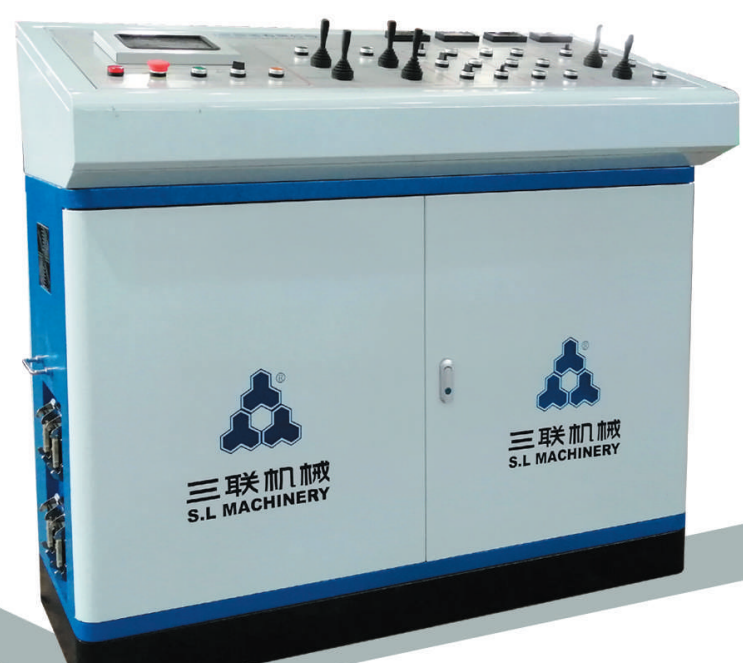

PLC  Control System

It realizes automatic control of production line and independent control of each system; System program is provided with linkage,interlock status display.It also realizes status display,failure diagnosis and data input through the computer implementation.




Block Making Machine :


The servo vibration system contains a servo controller,four servo drivers and four servo motors(the quantity of servo drivers and servo motors can be changed according to requirements);The vibration table is composed of a vibration box and a vibration platform.

Turn on the servo vibration system and the vibration table distributes material at a low frequency before pressing. After the material distribution finishes,vibration presses material at a higher frequency.

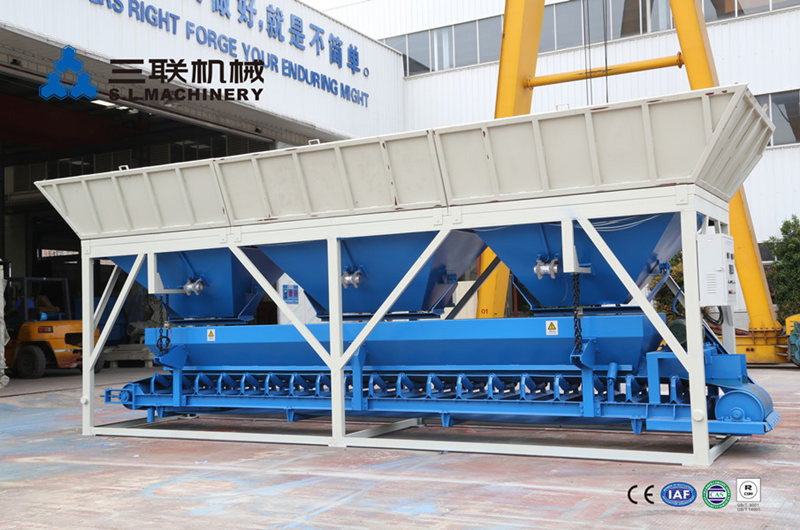

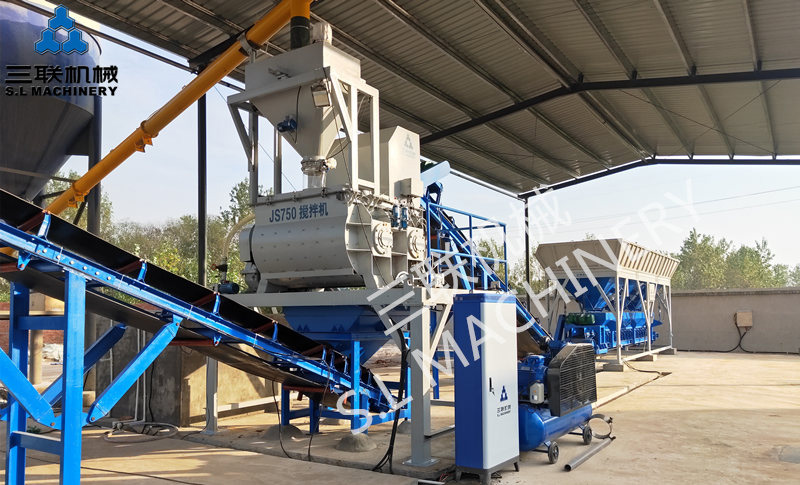

Batching Machine:

With the standard of measurement permission,fast and low batching measurement can be realized. With vibration device,it ensures smooth blanking.

According to different aggregates and different requirement about products,and the mix ratio of aggregates, it adopts the automatic weighing of high precision three-point induction sensor.



机型/TYPE

称量斗容积/Volume of Weigh hopper

出料斗容积Volume of Unloading Hopper(M3)

生产率

Productivity

(M3/h)

最大称量值

Max Weigh Value

可配骨料种数

Batching Category of Aggregate

上料高度Height of loading material(mm)

配料及卸料方式Batching&Unloading Method

功率

Power(KW)

外形尺寸

Frame Measurement(MM)

质量

Net Weight(T)

PL800

2M3 x 2

0.8

48

1.5T

2

2300

水平或T字形电动皮带机Horizontal or T shape belt conveyor

6.6

5470x1820x2700

2

PL1600-3

7M3 x 3

1.6

96

3T

3

2900

13

11650x2300x3450

5

Pl1600-4

7M3 x 4

1.6

96

4T

4

2900

16

15200x2300x3450

7


Mixing System:

Horizontal Type Double Shaft Compulsory Mixer: Fast mixing speed. It is more suitable for mixing aggregate of medium&large particle.



PLC Control System:

Select electrical accessories of international famous brand, such as Siemens,SEW,Toledo etc.,performance is more stable.
