The servo vibration system contains a servo controller,four servo drivers and four servo motors(the quantity of servo drivers and servo motors can be changed according to requirements);The vibration table is composed of a vibration box and a vibration platform.

Turn on the servo vibration system and the vibration table distributes material at a low frequency before pressing. After the material distribution finishes,vibration presses material at a higher frequency.

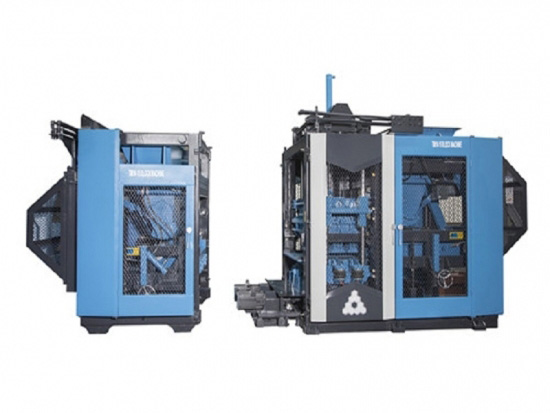

Product Description:

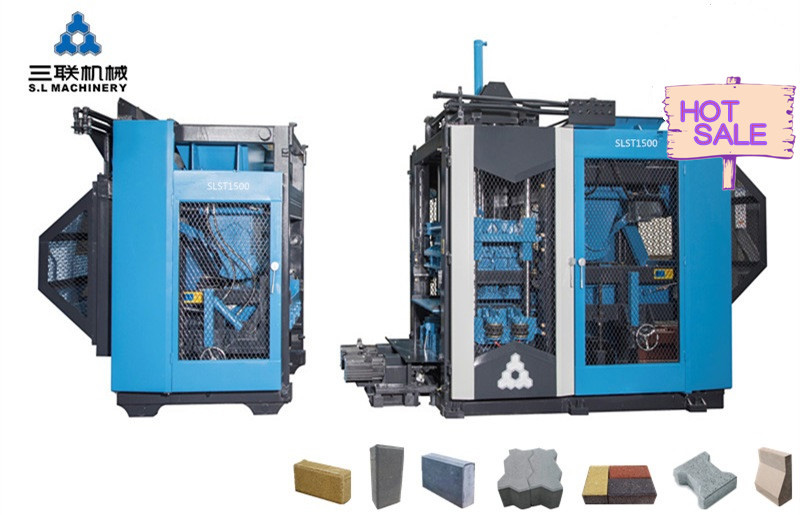

With servo technology, the forming area is large to be 1300 * 1150 MM. It can produce hollow building blocks, municipal road tiles, PC floor tiles, ecological stone like floor tiles, curbstones, super large blocks of water conservancy ecological slope protection etc..

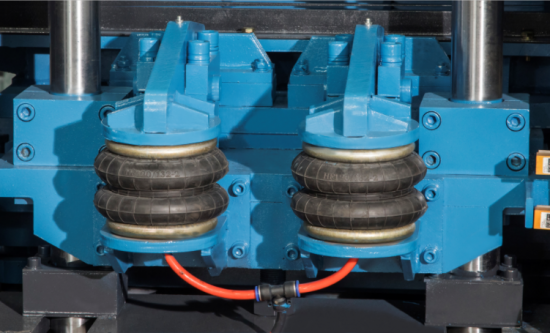

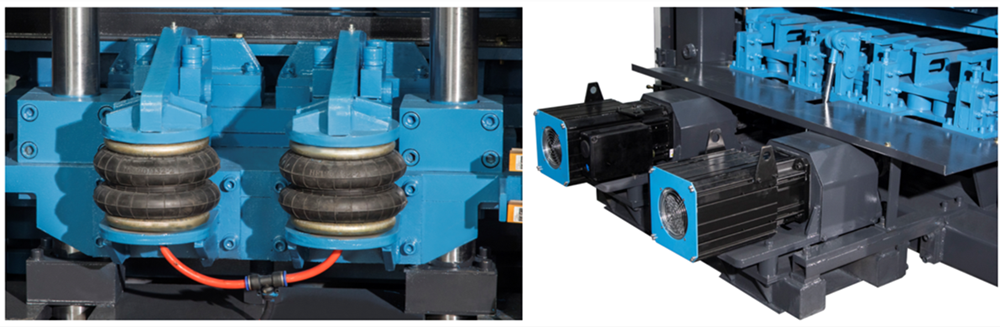

Airbag: The airbag structure is adopted, which is convenient for the installation and replacement of mold, and the amplitude of the mold frame can be adjusted by air pressure during production, which is suitable for large-scale equipment.

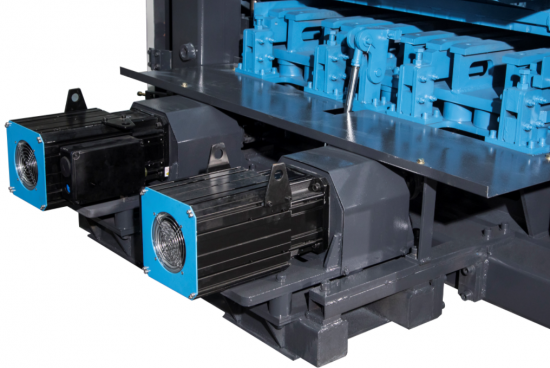

Servo Vibration System:

Adjust the phase angle to start or eliminate vibration

It realizes higher efficiency,lower energy consumption,better vibration effect and easy maintenance.

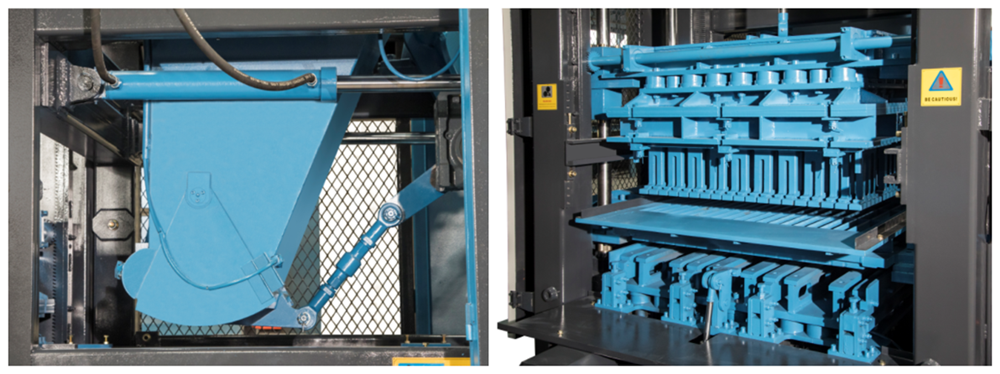

Base material bin and discharge parts: hydraulic cylinder control, storage of mixed raw materials.

The vibration table is composed of a vibration box and a vibration platform. Compressor and vibration table make blocks with various shapes according to different molds.

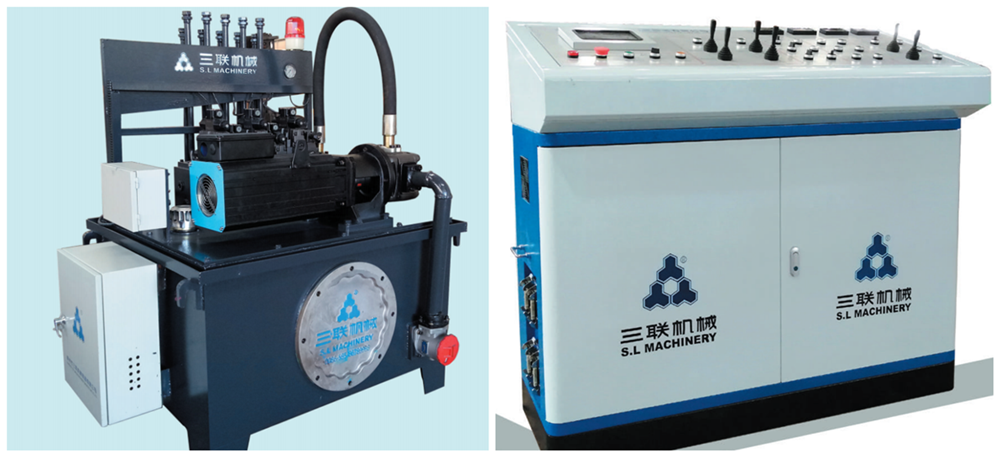

Servo Hydraulic System

Advantages of hydraulic system:

Energy consumption saved more than 30%,noise is 10-20 DB lower and the working efficiency is 10-20% higher than the traditional hydraulic system.

The heat produced by servo hydraulic system is just 10%-30% of the traditional hydraulic system.

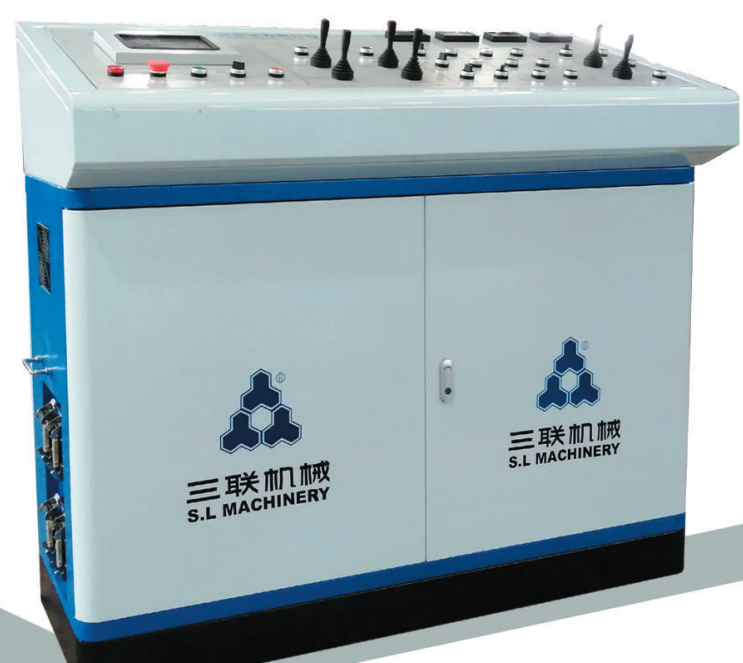

PLC  Controller System

It realizes automatic control of production line and independent control of each system; System program is provided with linkage,interlock status display.It also realizes status display,failure diagnosis and data input through the computer implementation;

Select electrical accessories of international famous brand, such as Siemens,SEW,Toledo etc.,performance is more stable.

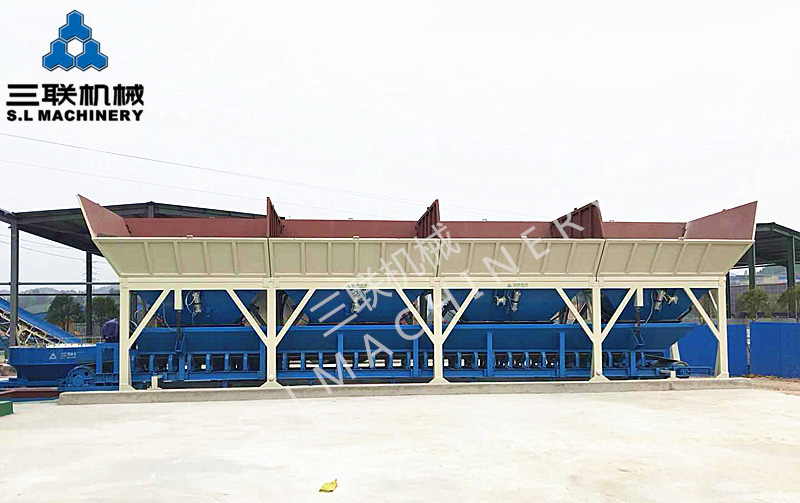

Batching Machine:

With the measurement permission standard,fast and low batching measurement can be realized. With vibration device,it ensures discharging material smooth.

According to different aggregates and different requirement about products,and the mix ratio of aggregates, it adopts the automatic weighing of three-point induction high precision sensor.

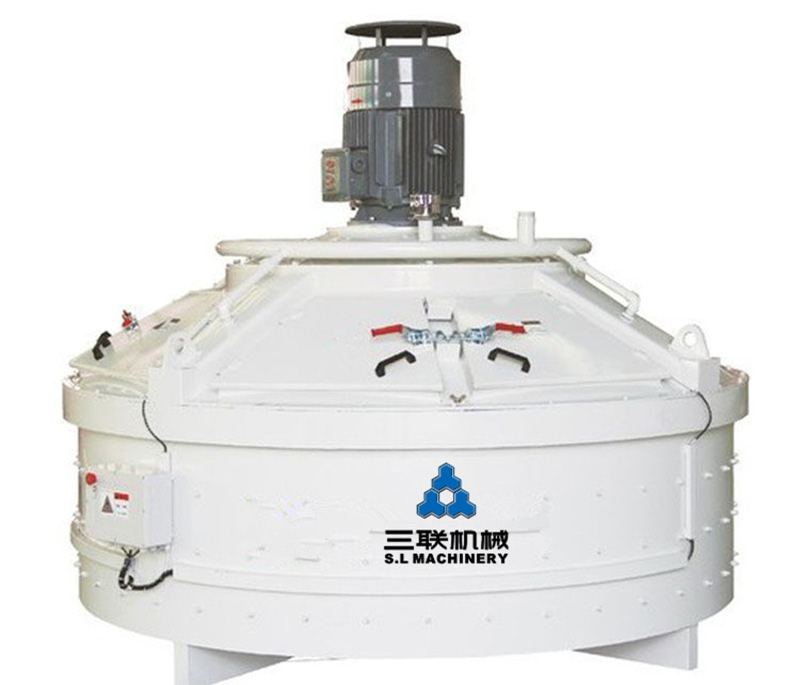

The mixing track is complex, mixing is strong and even, efficiency is high, maintenance and cleaning is easier.

PLC Control System :

Application :
