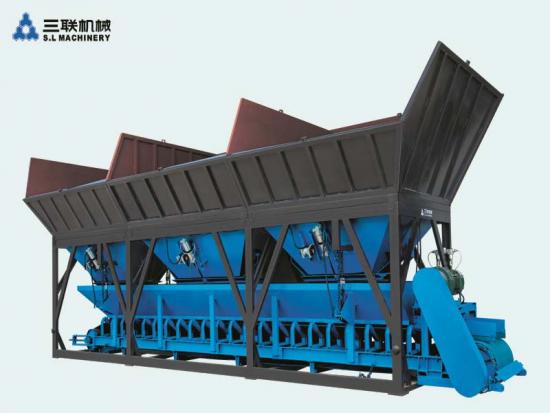

Automatic Weighing of High-precision Three-point Batching Machine

Batching Machine With the standard of measurement permission,fast and slow batching measurement can be realized,equipped with vibration device, to ensure smooth blanking.According to different aggregate and the gradation of different production products,and the pre-set aggregate mix ratio,it adopts the automatic weighing of high-precision three-point induction sensor.

product introduction

Batching Machine

Batching Machine With the standard of measurement permission, fast and slow batching measurement can be realized, equipped with vibration device, to ensure smooth blanking. According to different aggregate and the gradation of different production products, and the pre-set aggregate mix ratio, it adopts the automatic weighing of high-precision three-point induction sensor.

Main Technical Parameters

Type	PL400	PL1600-2	PL1600-3		PL1600-4
volume of storage Hopper(m3)	7m3x1	7m3x2	7m3x3		7m3x4
volume of weiging Hopper(m3)	0.6	1.6	1.6		1.6
Iproductivity (m3/h)	25	80	80		80
Maximum weighing value	0.5T	2T	3T		4T
Batching category of Aggregate		2	3		4
Height of Loading (mm)	2950	2950	2950		2950
Batcing & unloading Method	Horizontal belt conveyor
power(kw)	2.2	7.5	7.5	11
Net weight(T)	2.3	4	5.4	7.3
Frame Dimension (mm)	3755x2387x3196	5470x2387x3196	8510x2387x3196	11240x2387x3196
