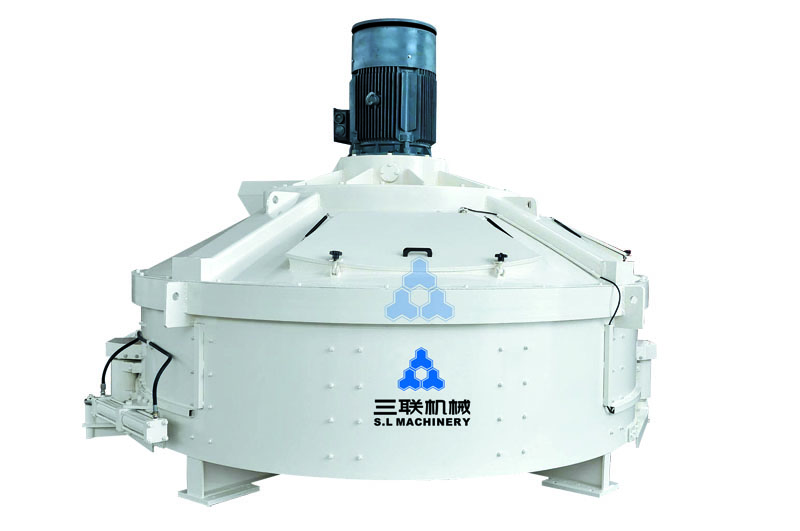

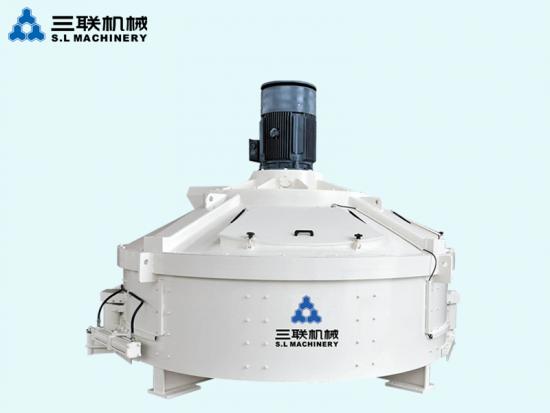

Vertical Shaft Planetary Mixer



Vertical Shaft Planetary Mixer complicated stirring motion track,strong stirring motion,unif rm stirring，high efficiency convenient maintenance and the ceaning.
Application：It is especia yl suitable for high-end cement products such as sponge permeable ecological brick and Pc imitation stone landscape brick on the market.




Vertical ShaftPlanetary Mixer

 The mixing motion track from 6s to 60s after feeding. Every four turns (6s) can completely cover the bottom plate of the mixer without any dead area.

Features：complicated stirring motion track,strong stirring motion,unif rm stirring，high efficiency convenient maintenance and the ceaning.

Application：It is especia yl suitable for high-end cement products such as sponge permeable ecological brick and Pc imitation stone landscape brick on the market.

Technical parameters

Item

MPC

50

100

150

250

330

500

750

1000

1250

1500

2000

2500

3000

Filling volume

L

75

150

225

375

500

750

1125

1500

1875

2250

3000

3750

4500

Filling capacity

kg

120

240

360

600

790

1200

1800

2400

3000

3600

4800

6000

7200

Output volume

L

50

100

150

250

330

500

750

1000

1250

1500

2000

2500

3000

Mixing power

Kw

4

5.5

7.5

15

18.5

30

37

45

55

75

90

110

Mixing star× Mixing Blade

Qty

1×2

1×2

1×2

1×2

1×2

1×2

1×3

2×2

2×2

2×2

3×2

3×3

3×3

side scraper/Discharge scraper

Qty

1/-

1/-

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/2

1/2

1/2

Discharging power

Kw

pneumatic Discharging

3

3

3

4

4

4

Mixing Hopper Diameter

mm

750

1000

1300

1300

1600

1 900

2200

2500

2800

2800

3100

3400

3400

weight

kg

500

850

1300

1500

2200

2500

3500

5500

6000

6500

8500

10500

11000

Note: As we continue to improve and improve the performance of our equipment, the  parameters are subject to the actual equipment.

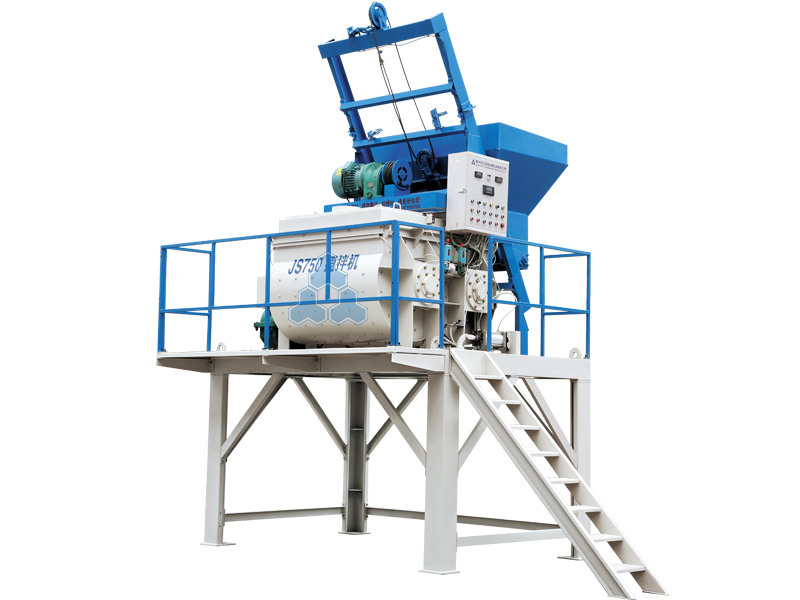

Double Lie shaft COMpulsory Mixer

Features：Fast stirring speed.

Application：lt is more suitable for mixing medium & large aggregate particle size.

Technical parameters

Type

LJB350

JS500

JS750

JS1000

charging volume(L)

560

800

1200

1500

Discharging volume(L)

350

500

750

1000

productivity(m3/h)

≥ 17.5

≥25

≥37.5

≥50

Max. Grain Diameter of Aggregate (mm)

60

60

60

60

speed of Mixing Blade(r/min)

35

35

32.6

32.6

Mixing Blade(pcs)

3

14

14

16

Model of mixing Motor

Y132m-4

Y180m-4

Y200L-4

Y180L-4

Power of Mixing Motor(kw)

7.5

18.5

30

22

Model of Hoist

JS350

JS500

JS750

JS1000

power of Hoist(kw)

4.5

5.5

7.5

11

Height of unloading Materlal(mm)

1200

1500

1600

2080

Model of water pump Motor

25ZB27-0.75

65JDB-30

65JDB-30

KQw65-100

power of water pump(kw)

75D

1.1 KW

1.1 KW

1.5KW

IFrame DImension in working condition(mm)

3618X1222X3453

4461X3050X5225

4950X3636X6530

7922X3510X6064

Transport state Frame Dimensiom(mm)

1721X1222X2450

3050X2300X2500

4150X3636X2500

4200X3110X2780

Net weight(T)

2

4

6.8

9
