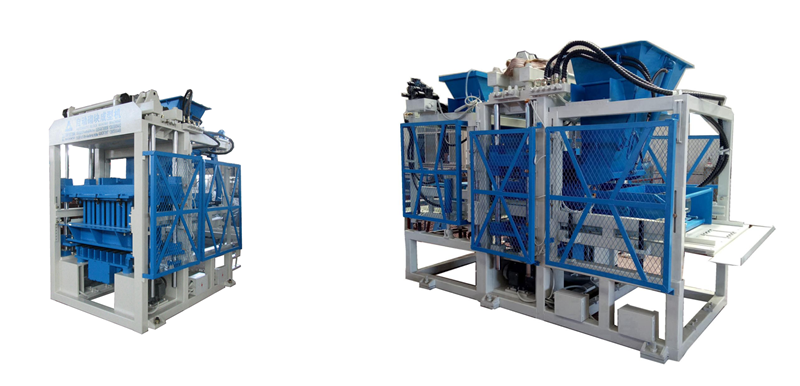

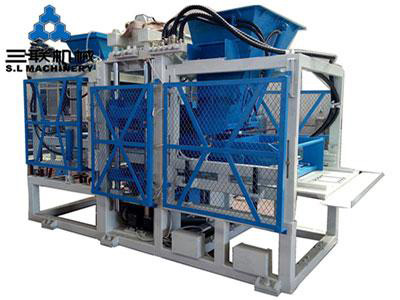

Q(F)T 4-15 Motor Vibration Concrete Block Making Machine

The separated vibration motor, that can solve the problem of big noise from one-way motor, the shortening of usage life.Vibration layout is more reasonable to improve product quality. Simple structure,frequency converting control, synchronous gearbox + synchronous universal shaft connection, low frequency charging while high frequency molding.

Item no.: Q(F)T 4-15 Concrete

Product origin: China

product introduction

Block molding machine,easy to operate and maintain,small investment.

Cost get back in a short time,it is suitable to use on economic production line.

The separated vibration motor, that can solve the problem of big noise from one-way motor, the shortening of usage life.Vibration layout is more reasonable to improve product quality. Simple structure,frequency converting control, synchronous gearbox + synchronous universal shaft connection, low frequency charging while high frequency molding; easy maintenance and operation, low energy consumption as well as low maintenance cost.

机型/Type		QFT4-15	QFT6-15	QFT8-15	QFT10-15
激振力 Vibration Force/KN		50	60	80	100
振动频率 Vibration Frequency/HZ		0-60	0-60	0-60	0-60
主机配用功率 Total Power/KW		31.7	41.28	47.78	59.28
成型方式 Molding Method		自动上料振压成型 Automatic loading material by vibration and compression molding method
控制方式 Control Mode		PLC全自动电脑控制 PLC Automatic control
托板尺寸 Pallet Measurement		880x500x20	880x680x20	970x880x20	1220x900x25
成型周期 Molding Cycles/S		15-20	15-20	15-20	15-20
外形尺寸 Frame measurement/MM		4950x1740x2800	8740x2000x2800	8600x2100x3020	8700x2500x3020
主机部分净重 Net weight of molding machine/T		5.2	8.2	10.1	12.2
年产量300天两班 Annual Output based on double shift per day and total 300 days	砌块block/M²	55,000	85,000	125,000	140,000
	路面砖paving block/M²	276,480	362,000	500,000	691,000

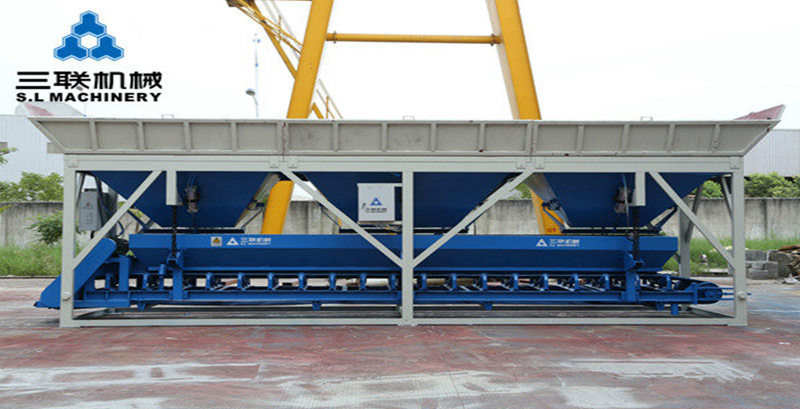

Batching Machine :

With the measurement permission standard,fast and low batching measurement can be realized. With vibration device,it ensures smooth blanking.

According to different aggregates and different requirement about products,and the mix ratio of aggregates, it adopts the automatic weighing of high precision three-point induction sensor.

机型/TYPE

称量斗容积/Volume of Weigh hopper

出料斗容积Volume of Unloading Hopper(M³)

生产率

Productivity

(M³/h)

最大称量值

Max Weigh Value

可配骨料种数

Batching Category of Aggregate

上料高度Height of loading material(mm)

配料及卸料方式Batching&Unloading Method

功率

Power(KW)

外形尺寸

Frame Measurement(MM)

质量

Net Weight(T)

PL800

2M³x 2

0.8

1.5T

2300

水平或T字形电动皮带机Horizontal or T shape belt conveyor

6.6

5470x1820x2700

PL1600-3

7M³x 3

1.6

2900

11650x2300x3450

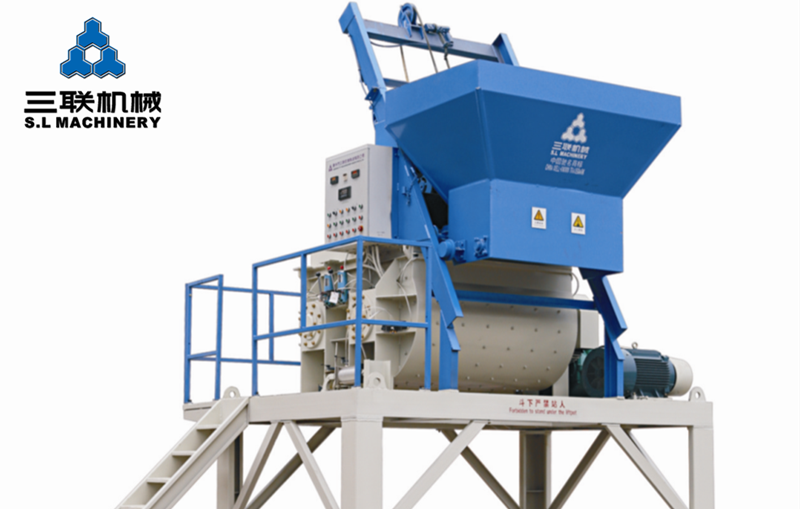

Mixing Machine :

The compulsory mixer with double horizontal shaft mixes in fast speed.It is suitable for mixing medium & large aggregate particle size.

机型Type	LJB350	JS500
进料容量Charging Volume/L	560	800
出料容量Discharging Volume/L	350	500
生产率Productivity/M³/h	≥ 17.5	≥ 25
骨料最大粒径Max Diameter of Aggregate/MM	60	60
搅拌叶片转速Speed of mixing Blade/R/min	35	35
搅拌叶片数量Mixing Blade/PCS	3	14
搅拌电机型号Model of Mixing Motor	Y112m-4	Y180m-4
搅拌电机功率Power of mixing motor/KW	5.5	18.5
卷扬机型号Model of Winch	JS350	JS500
卷扬机功率Power of Winch/KW	4.5	5.5
卸料高度Height of Unloading Material/MM	1200	1500
水泵电机型号Model of Water Pump Motor/	252B21-0.37	252B27-0.75
工作状态外形尺寸Frame of Working Dimension/MM	3618 X 1222 X 3453	4461 x 3050 x 5225
运输状态外形尺寸Frame Measurement in transporting	1721 x 1222 x 2450	3050 x 2300 x 2500
机台重量Net Weight/T	2	4

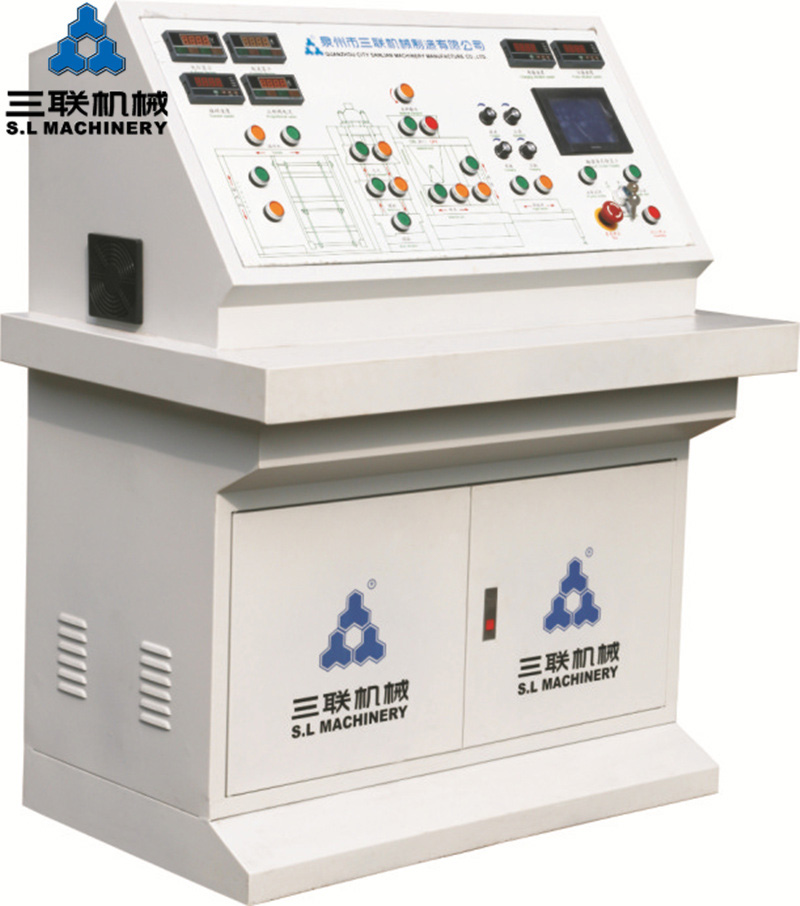

Control System :

It realizes automatic control of production line and independent control of each system; System program is provided with linkage,interlock status display.It also realizes status display,failure diagnosis and data input through the computer implementation.

Molding System :

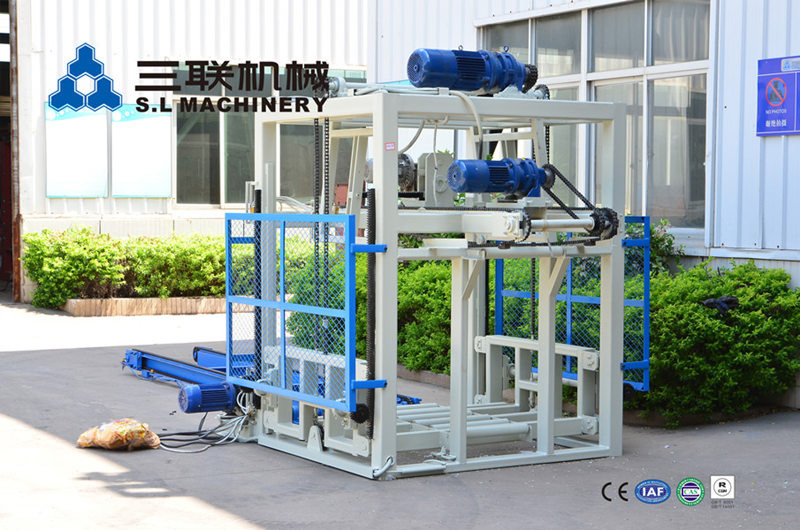

Block Stacker :

Block Sample :
